D-MTV02225

Donoptics Optical Lens assembly include CCTV lens, MTV lens, fisheye lens, MegaPixel lenses, board lens,wide-angle lenses, projector lens, scanner lenses, fingerprint device lens series and other various customized lens.

Lens are widely used for optical fields, such as security monitoring, back sight of cars, 360 sight horizon, digital camera , car recorder, visible doorbell, video phone, we can provide customized research and development optical lenses.

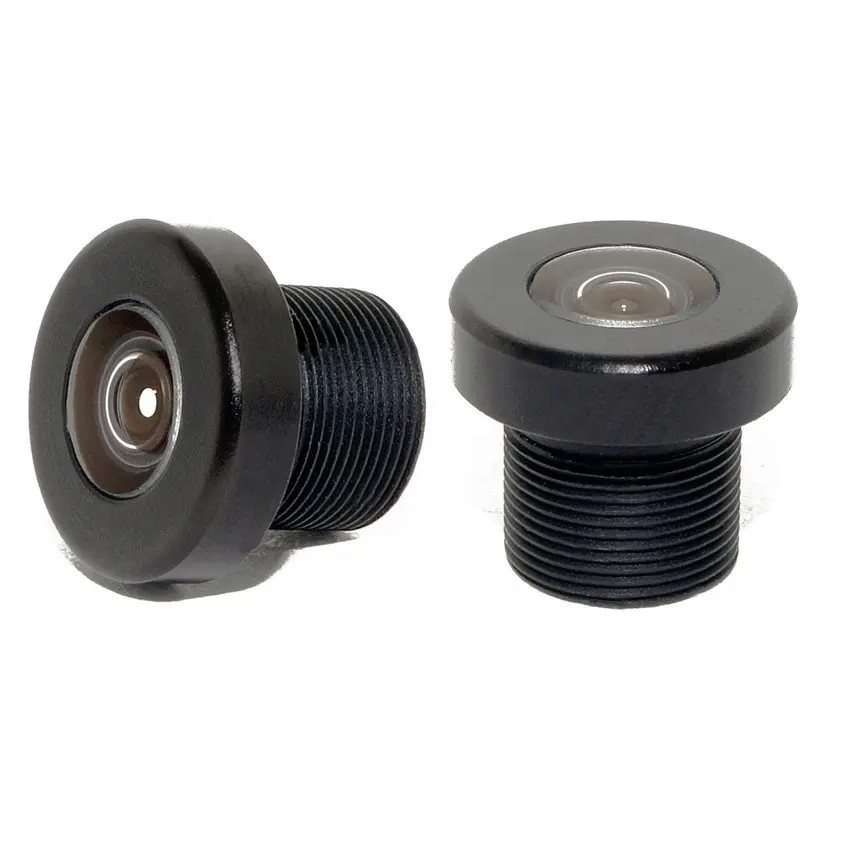

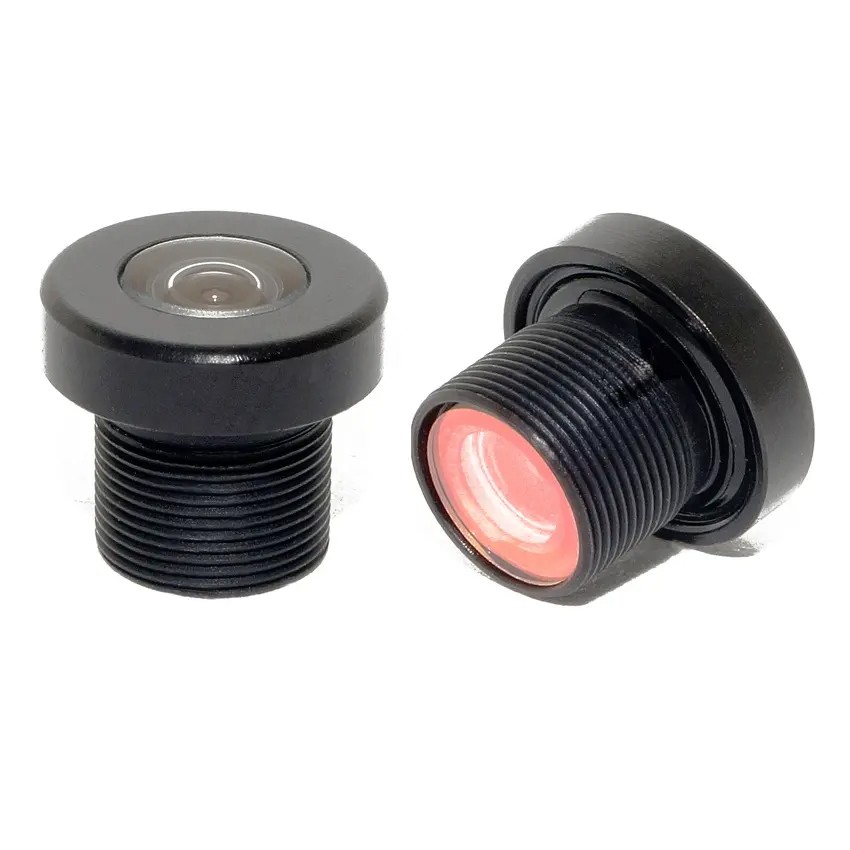

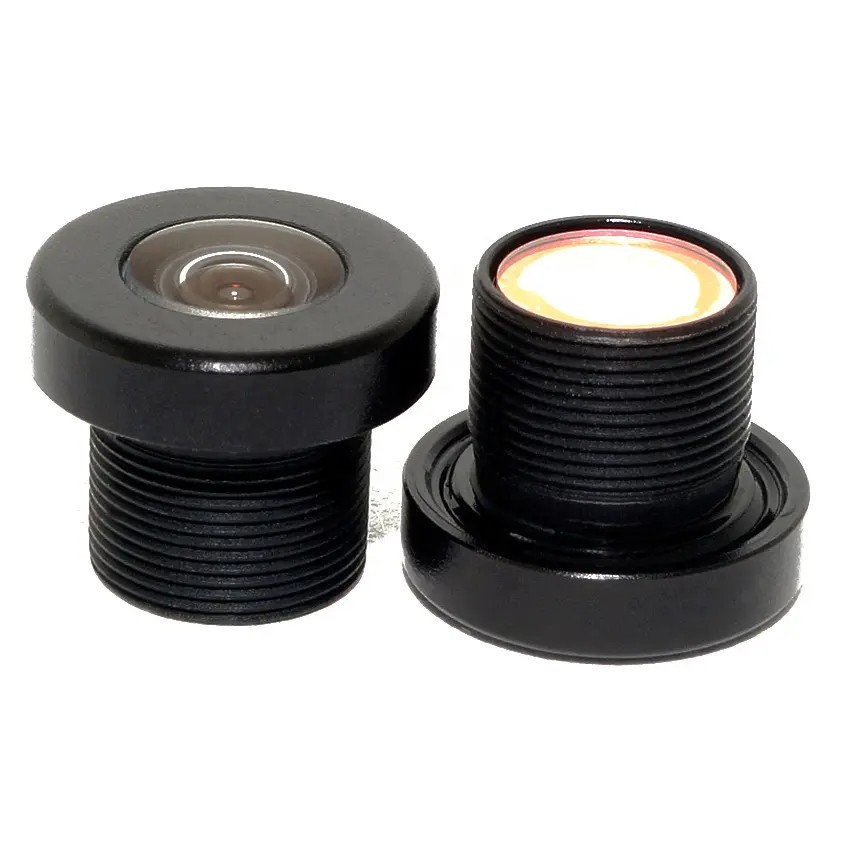

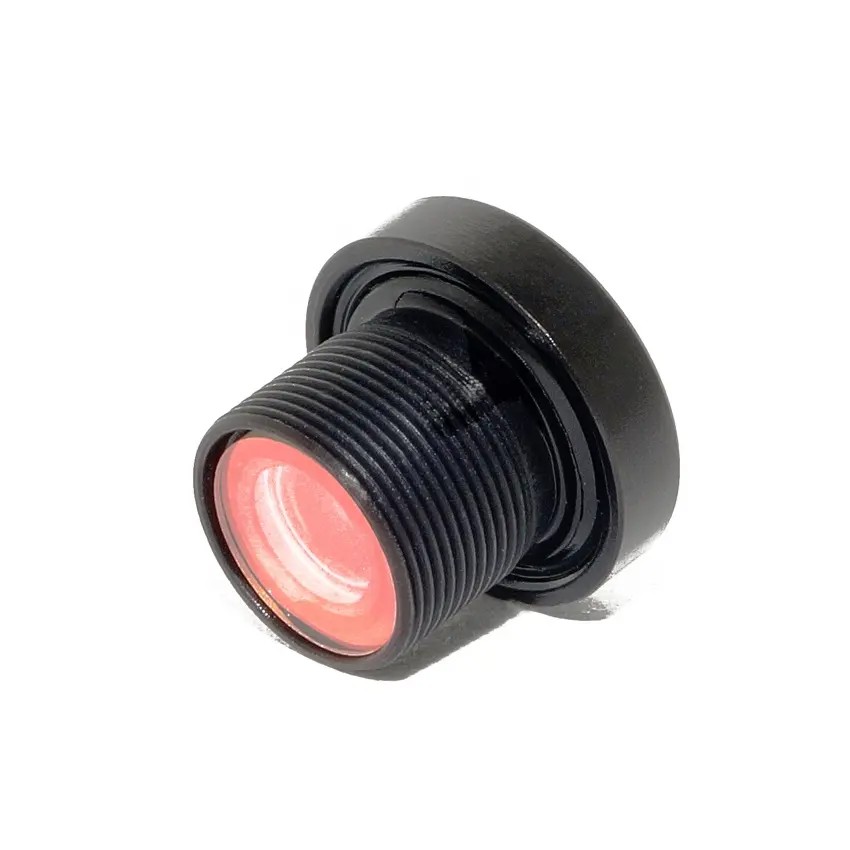

   1/4" CCTV Lens With 2.2mm Focal Length F2.5 M7 Board Lens For Cctv Security Camera

   Model Number：D-MTV02225

   EFL：2.20

   F/No：2.50

   FOV(D/H/V)：131/96/67 degree

   TTL：9.79

   Sensor Size：1/4(640*480 5.6um)

   Thread Size：M7*P0.35 (M8)

   TV Distortion：-15%

   Lens Structure：3G1P

   Flange Back Length：1.54mm

   Back Focal Length：2.66mm
