D-MTV02924

Donoptics Optical Lens assembly include CCTV lens, MTV lens, fisheye lens, MegaPixel lenses, board lens,wide-angle lenses, projector lens, scanner lenses, fingerprint device lens series and other various customized lens.

Lens are widely used for optical fields, such as security monitoring, back sight of cars, 360 sight horizon, digital camera , car recorder, visible doorbell, video phone, we can provide customized research and development optical lenses.

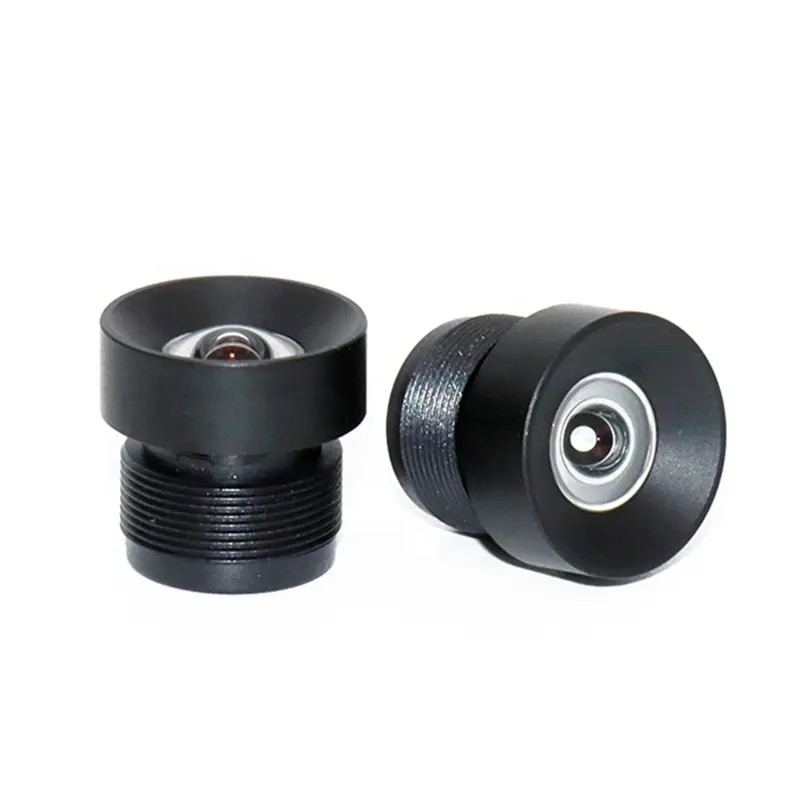

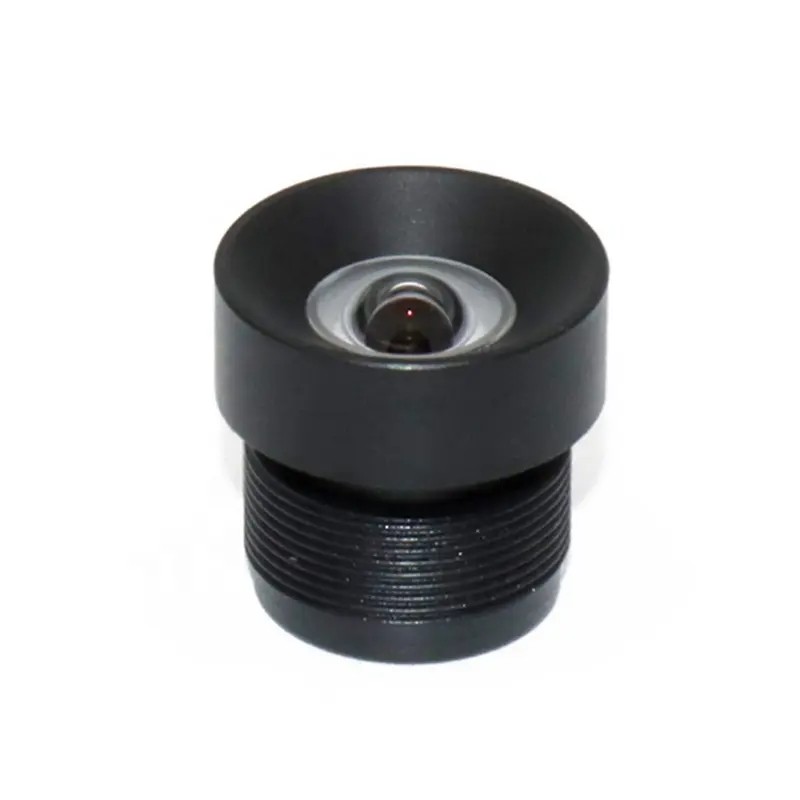

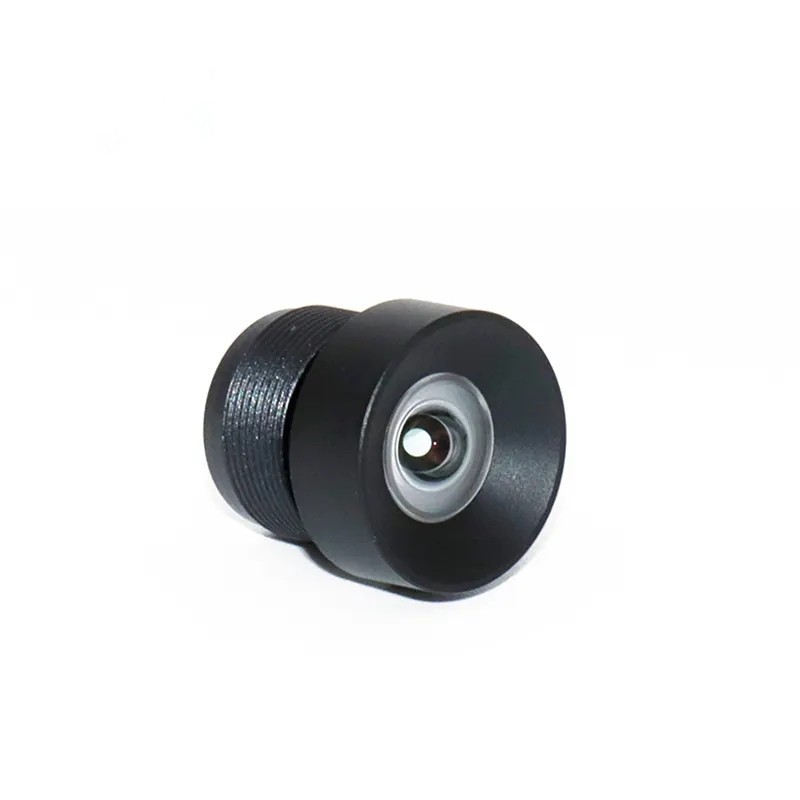

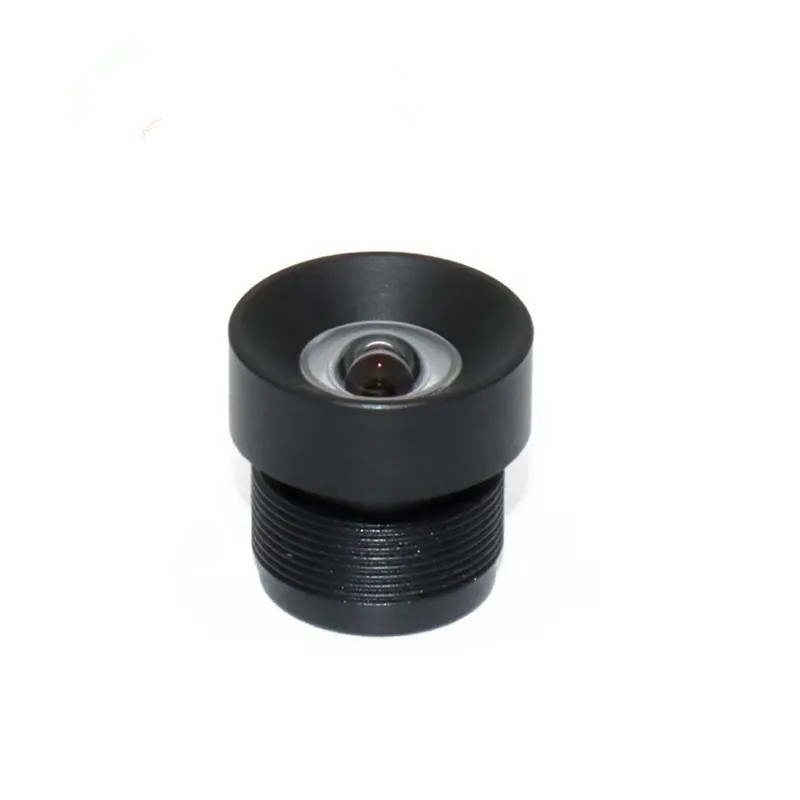

   F2.4 14.5mm Focal Length 2.4mm 2Megapixel 1/2.7 Inch M12 Fixed Hd Cctv Camera Lens

   Model Number：D-MTV02924

   EFL：2.96

   F/No：2.4

   FOV(D/H/V)：99/90/58

   TTL：14.50

   Sensor Size：1/2.7(1920*1080 3um)

   Thread Size：M12*P0.5

   TV Distortion：-2%

   Lens Structure：2G2P

   Flange Back Length：2.11mm

   Back Focal Length：3.21mm
