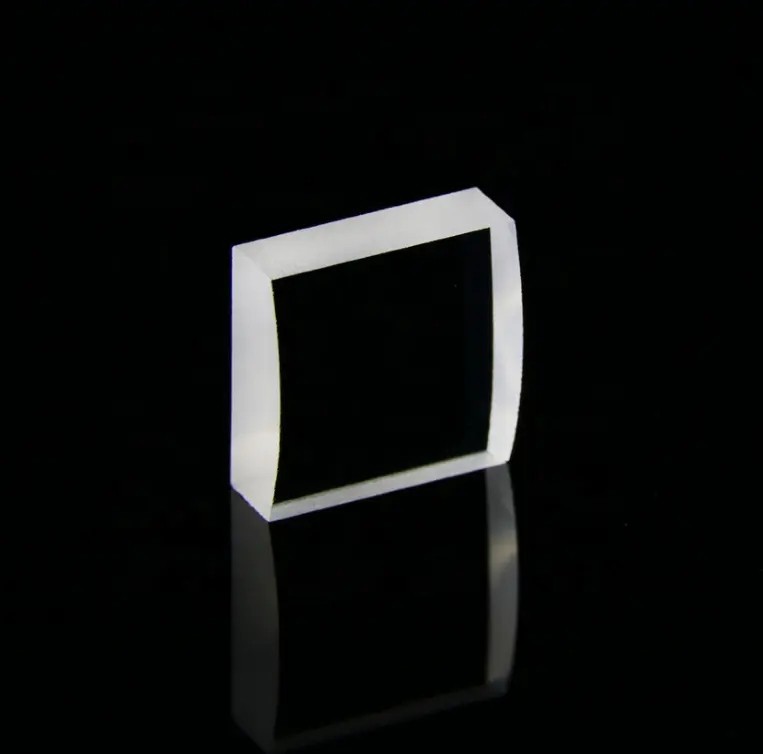

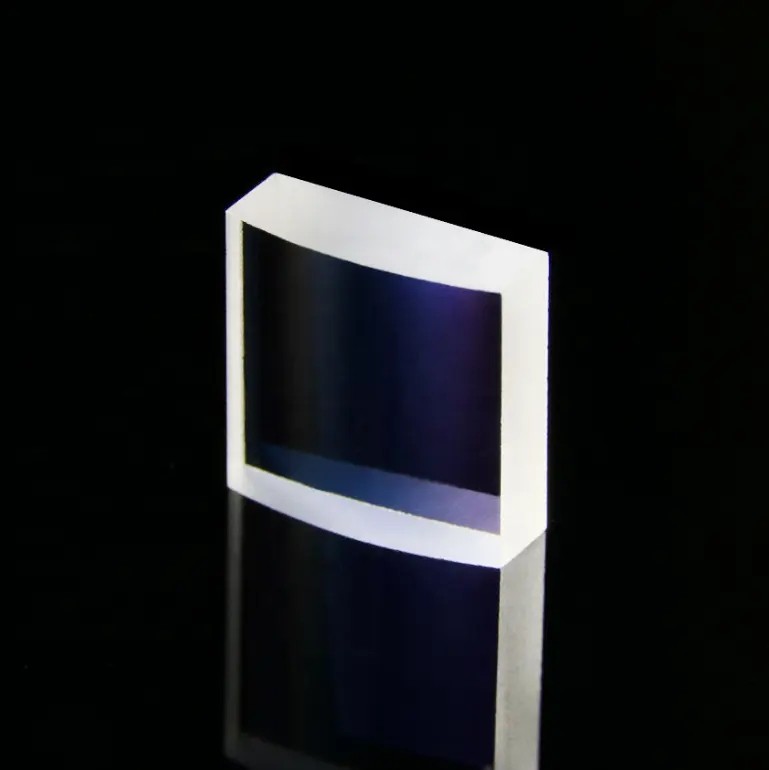

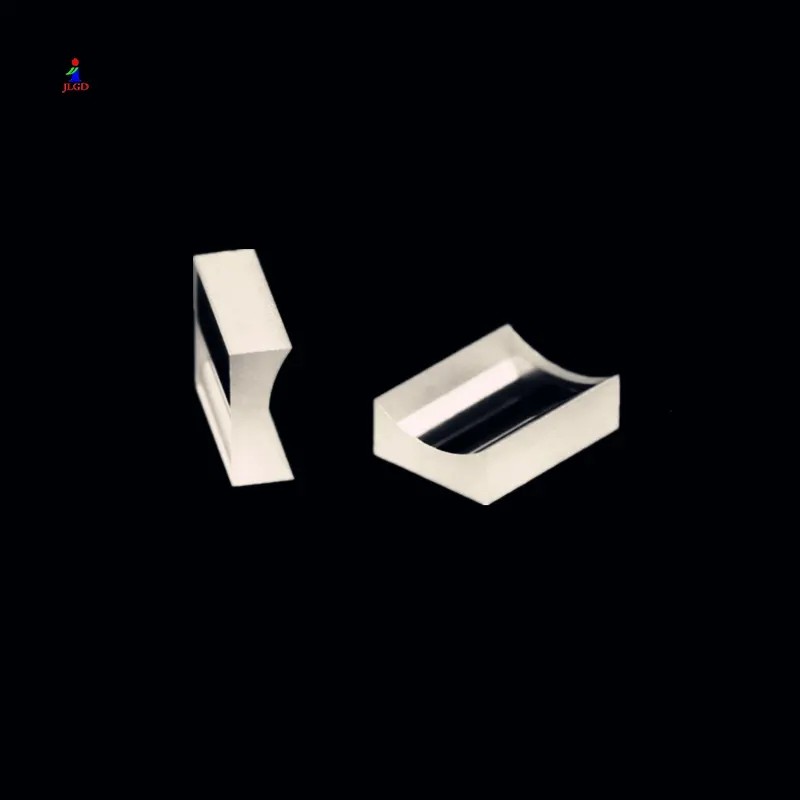

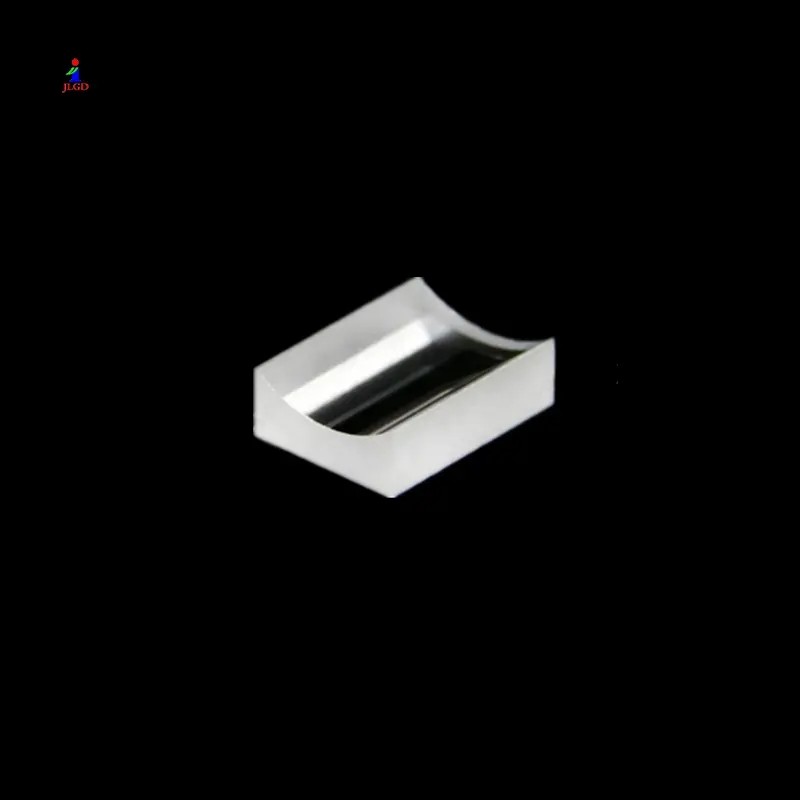

Cylindrical lens

● MOQ: ≧ 50pcs for OEM. 5 to 20pcs also welcome for sample order.
● Price: Depend on the quantity , materials and specification requirements, etc.
● Tooling Cost:Tooling charge may be needed for new design.
● Lead Time: General 7-15 days for customized drawing. Negotiable for Large Qty.
● Packaging: Blister packaging or bubble wrap for optical components with Carton.
●Payment Term:Payment>500USD, 30% T/T in advance, 70% balance before shipment. Payment<=500USD, 100% in advance.


cylindrical lens is a lenswhich focuses light into a line instead of a point, as a sphercial lens would. The curved face or faces of a cylindrical lens are sections of a cylinder, and focus the image passing through it into a line parallel to intersection of the surface of the lens and a plane tangent to it along the cylinder's axis. The lens converges or diverges the image in the direction perpendicular to this line, and leaves it unaltered in the direction parallel to its cylinder's axis (in the tangent plane).

The process capacity for the cylindrical lens

● Material:N-BK7, H-K9L, Fused Silica, H-ZF52A, Sil, MgF2, CaF2, Sapphire, ZnSe, ZnS, etc.

● Diameter:5-200mm

● Tolerance: +/-0.05mm

● Thickness tolerance: +/-0.05mm

● Surface accuracy: λ/4 @632,8nm

● Centration : < 1 arc min

● Clear aperture : >90%

● S/D :60-40,40-20,20-10

● Coatings: AR coating,BBAR coating, customized available.
