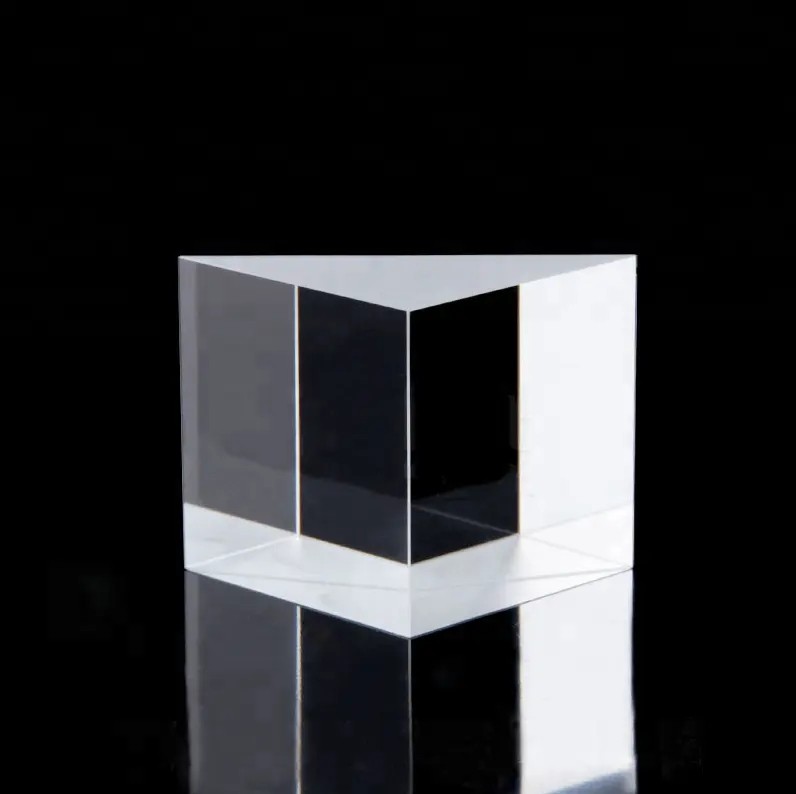

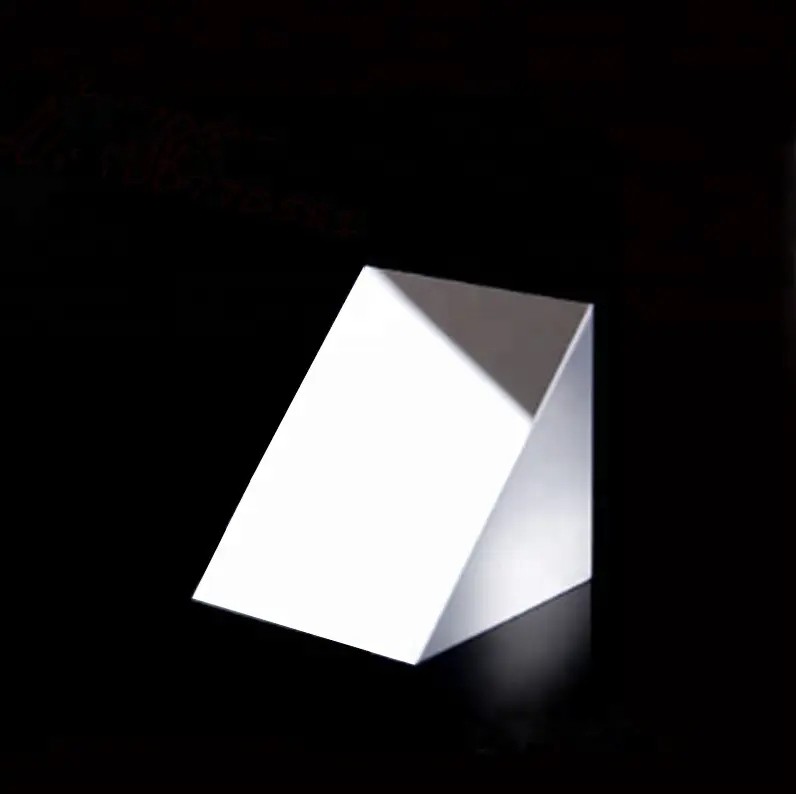

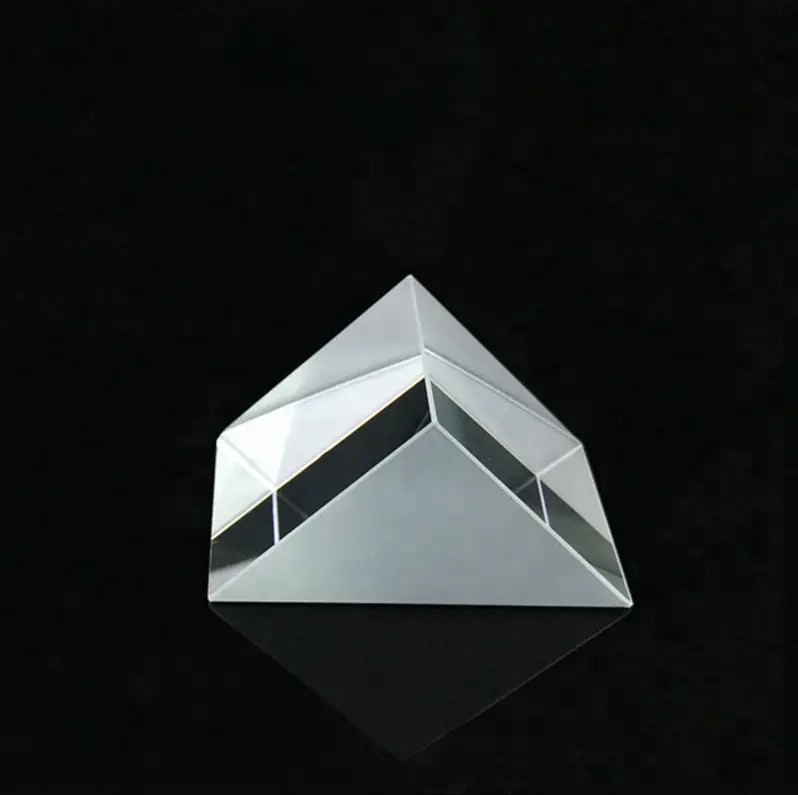

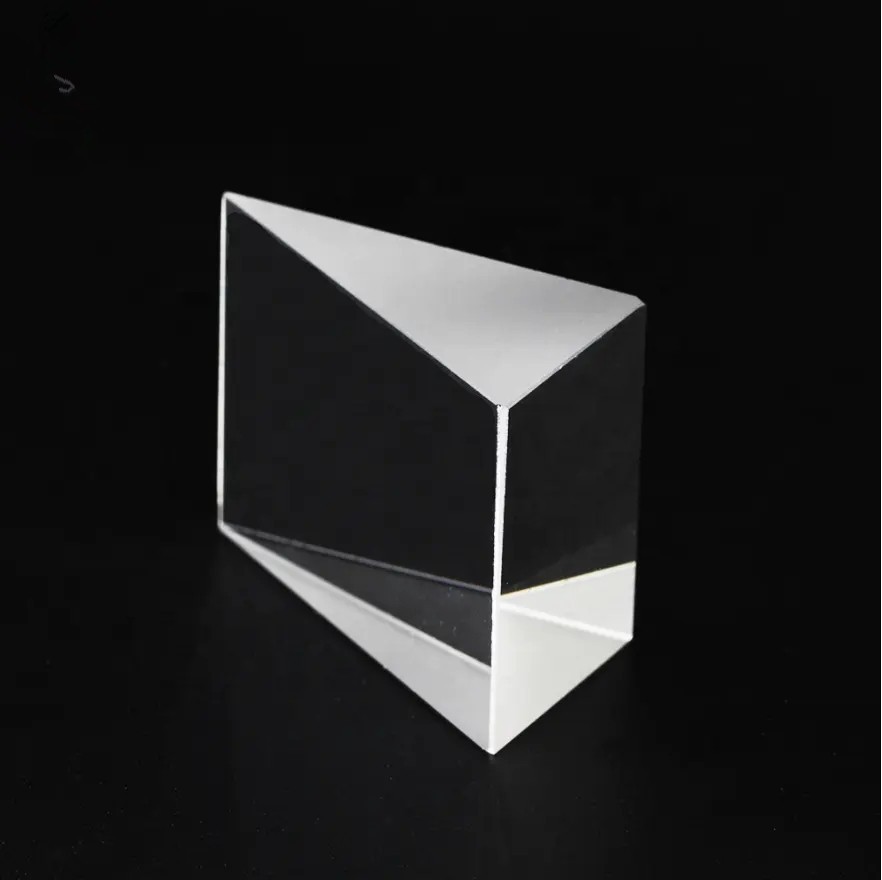

Right Angle Prism

● MOQ: ≧ 50pcs for OEM. 5 to 20pcs also welcome for sample order.
● Price: Depend on the quantity , materials and specification requirements, etc.
● Tooling Cost:Tooling charge may be needed for new design.
● Lead Time: General 7-15 days for customized drawing. Negotiable for Large Qty.
● Packaging: Blister packaging or bubble wrap for optical components with Carton.
●Payment Term:Payment>300USD, 30% T/T in advance, 70% balance before shipment. Payment<=300USD, 100% in advance.


A right angle prism is an optical prism designed to deviate light by 90° or 180°, depending on the orientation of the prism and the face through which light enters.  The joining edges and faces are perpendicular to the base faces, and all joining faces are rectangular.

The process capacity for right angle prism

● Material:N-BK7,  or upon other optical request.

● Diameter:5-200mm

● Dimension Tolerance: +/-0.05mm

Angle tolerance:90°±3’ , 180°±5’

● Surface accuracy: λ/4 @632,8nm

● Clear aperture : >90%

● S/D :60-40,40-20,20-10

● Coatings: MgF2 Single-layer Anti-reflection coating (SLAR) Aluminum Coating + Black Paint.
