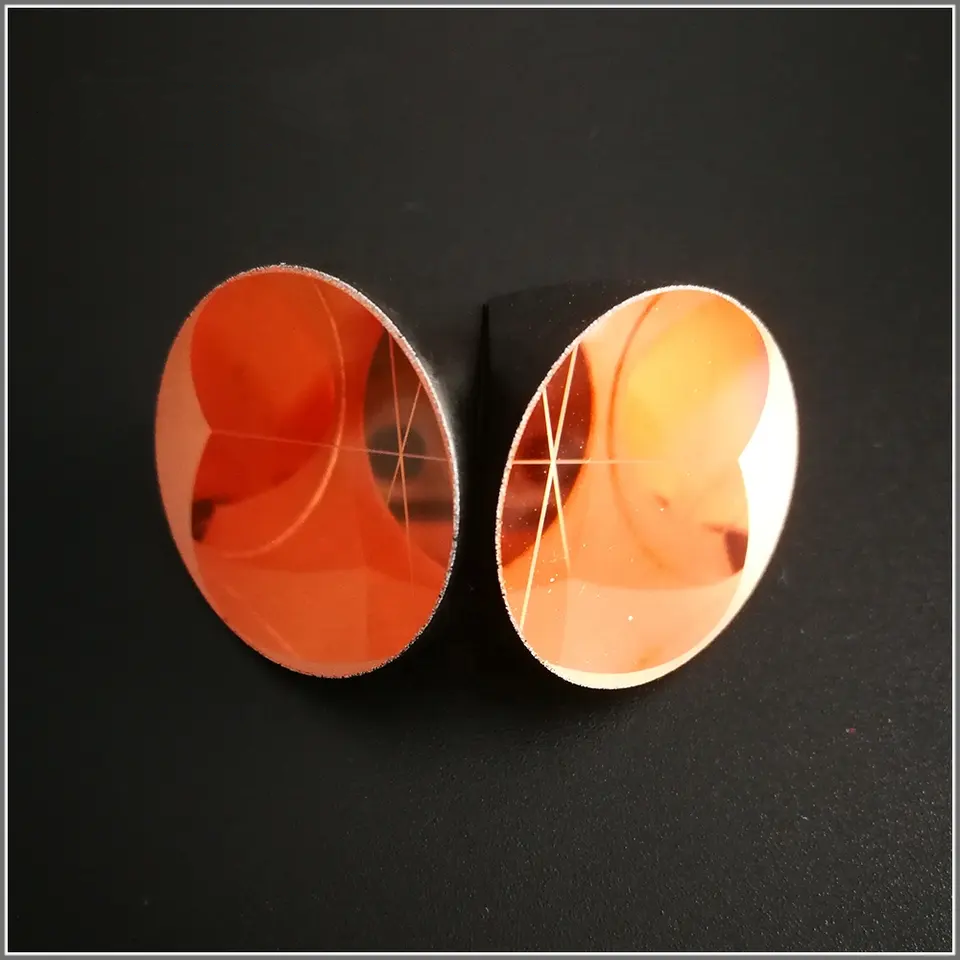

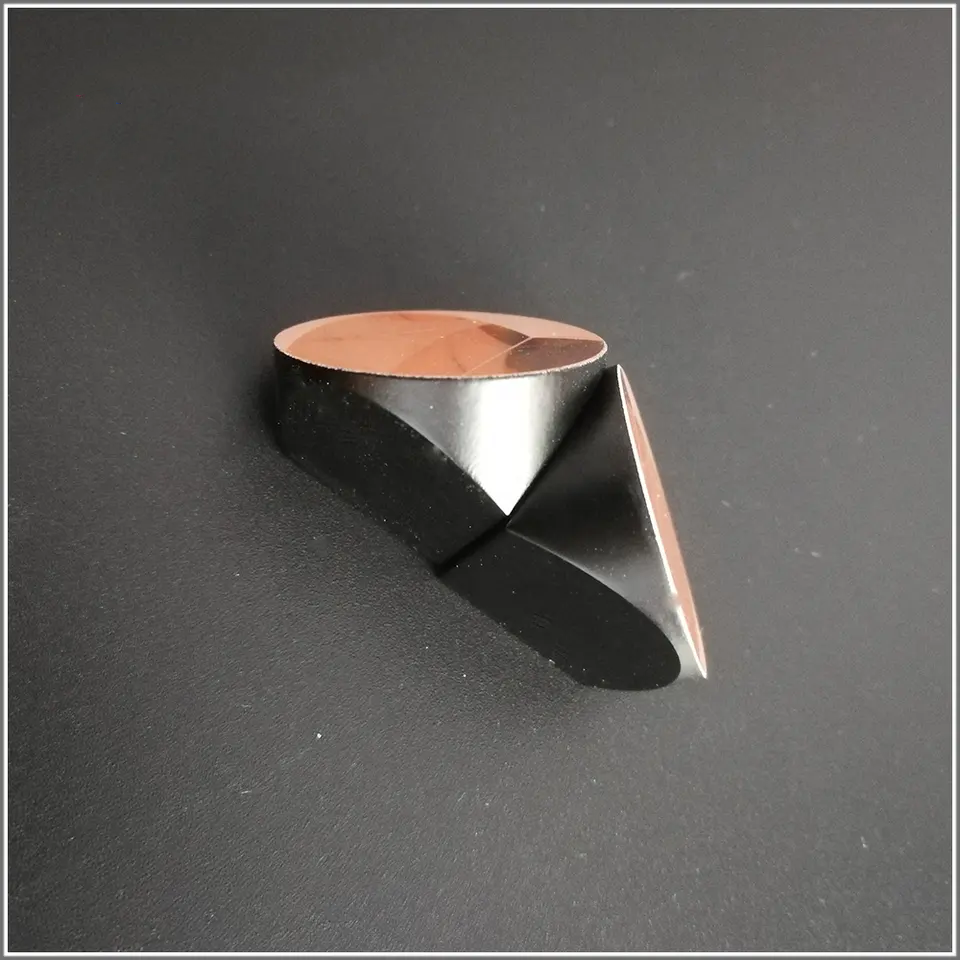

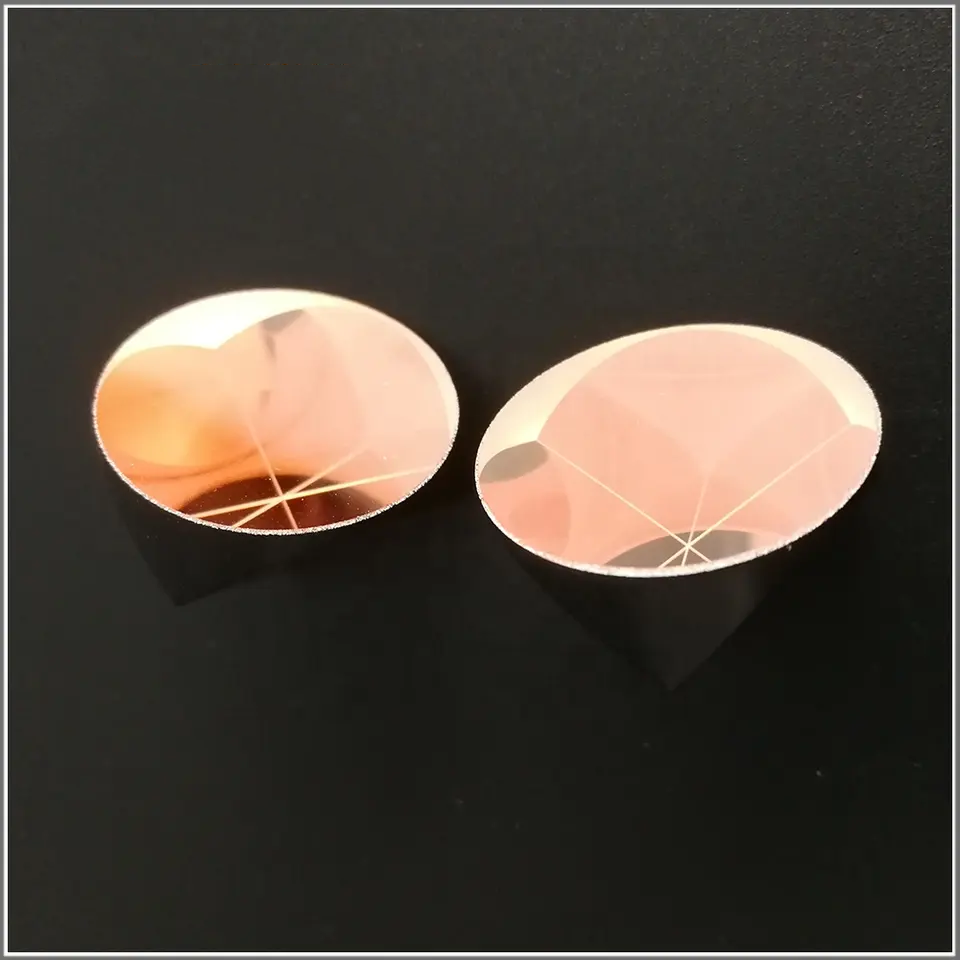

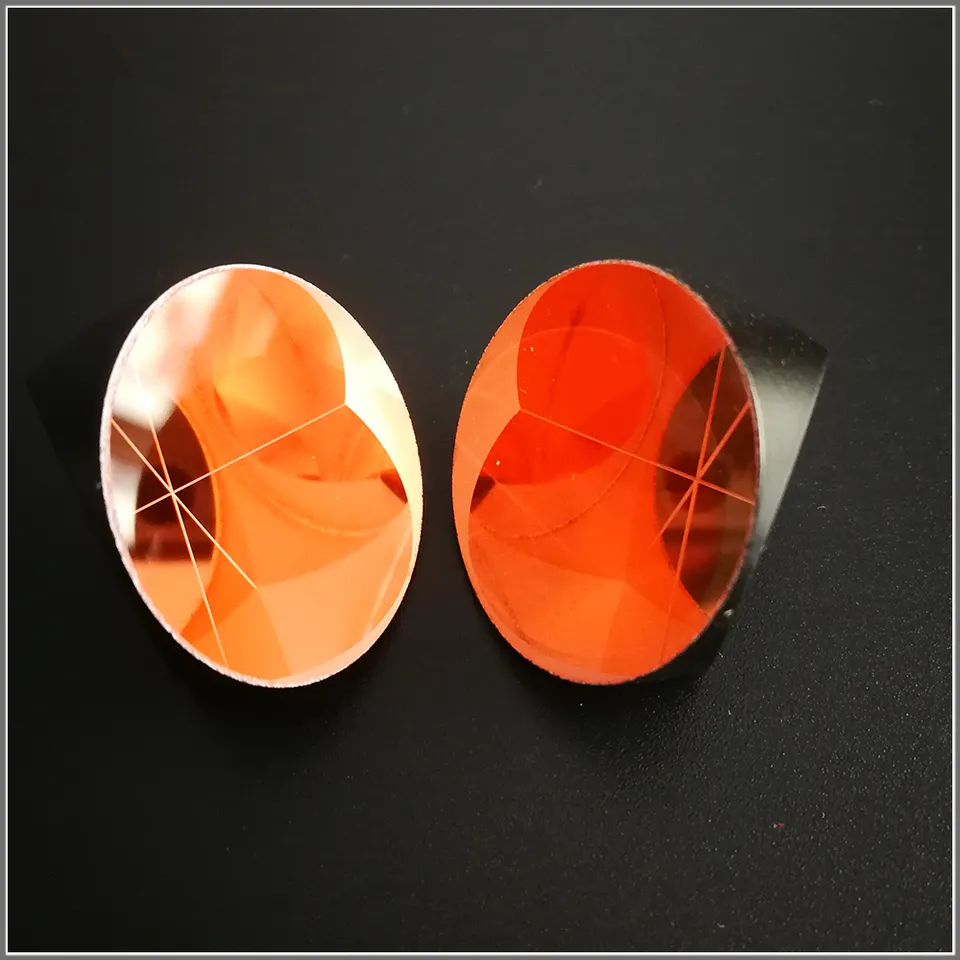

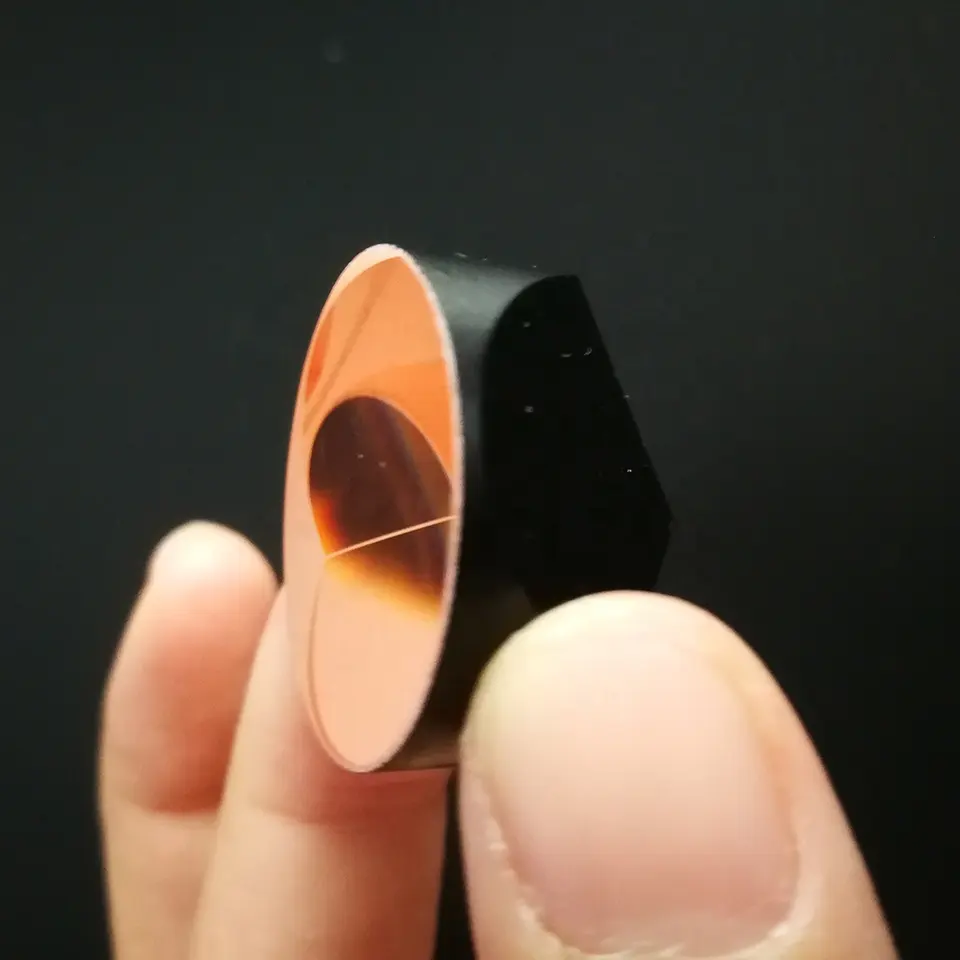

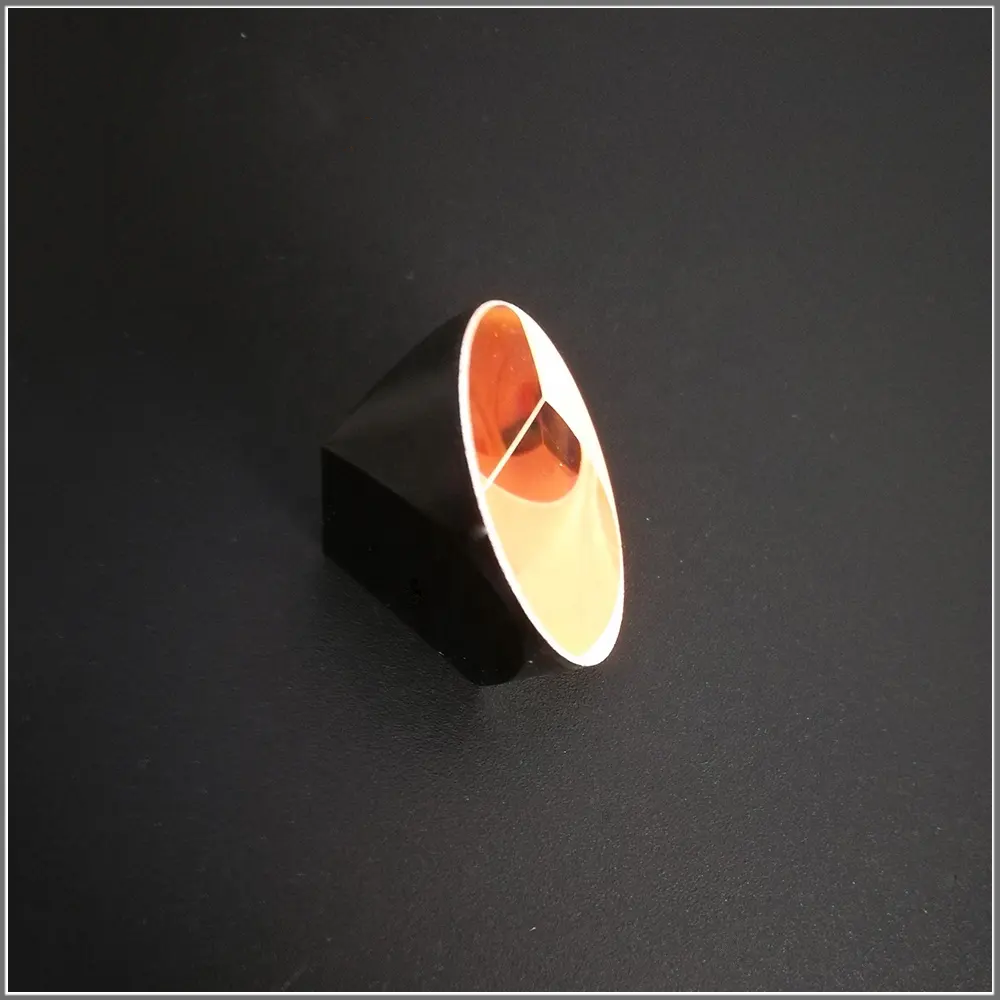

Corner Cube

MOQ: ≧ 50pcs for OEM. 5 to 20pcs also welcome for sample order.
● Price: Depend on the quantity , materials and specification requirements, etc.
● Tooling Cost:Tooling charge may be needed for new design.
● Lead Time: General 7-15 days for customized drawing. Negotiable for Large Qty.
● Packaging: Blister packaging or bubble wrap for optical components with Carton.
●Payment Term:Payment>300USD, 30% T/T in advance, 70% balance before shipment. Payment<=300USD, 100% in advance.

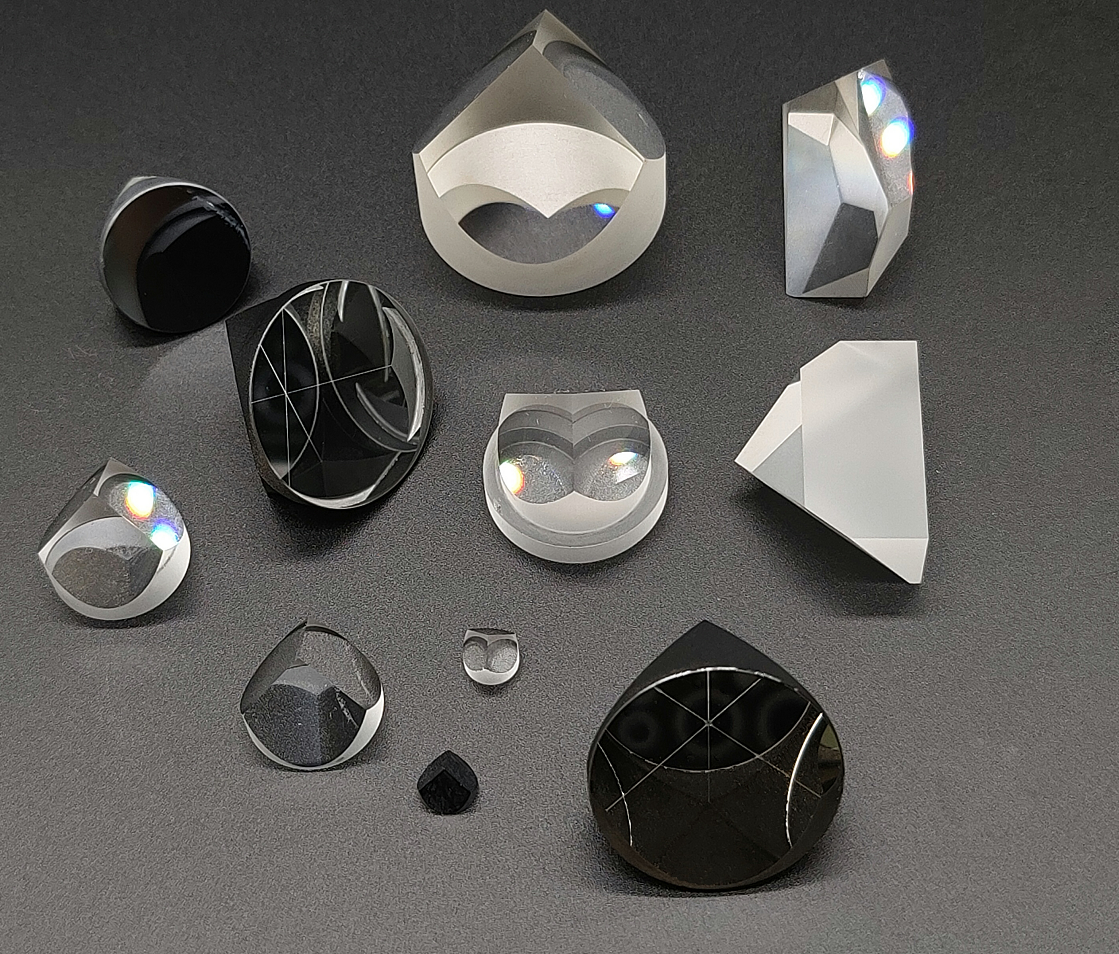

Corner cube prisms are prisms which act as corner reflectors, a type of retroreflectors. The basic operation principle is that there are internal reflections on three mutually orthogonal prism surfaces, leading to a direction of a reflected beam which is nominally parallel to the direction of the incident beam – with the accuracy limited only by the accuracy of the surface orientation of the prism. Precision prisms can offer excellent parallelism of incoming and reflecting beams. It is usually specified as an angular deviation, e.g. < 3 arcseconds.

1. Materials: H-K9, Fused Silica, or others kinds of high quality optical glass.

2. Processing capability:

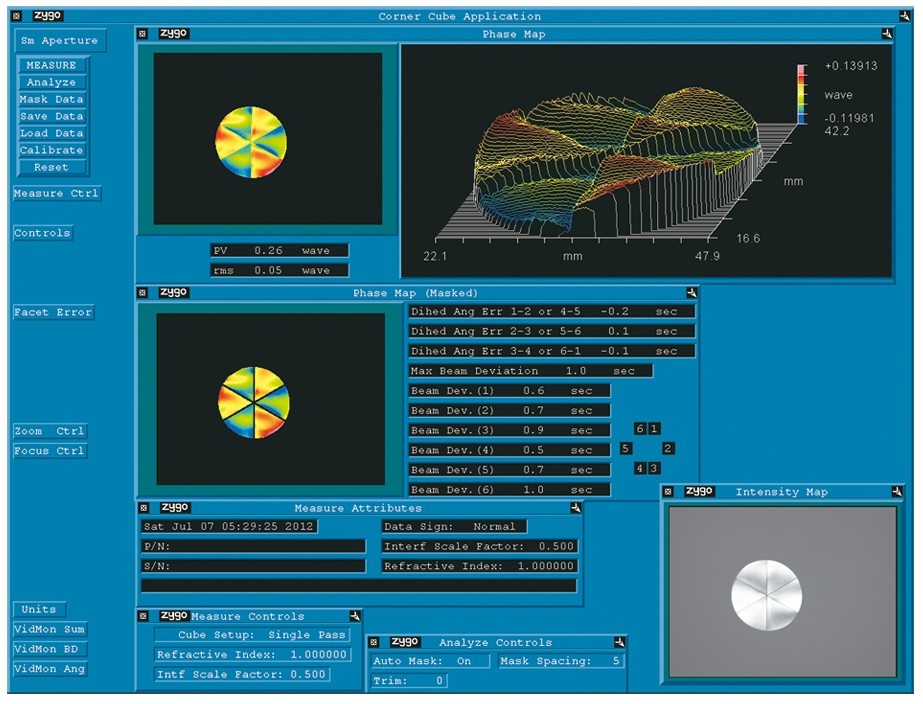

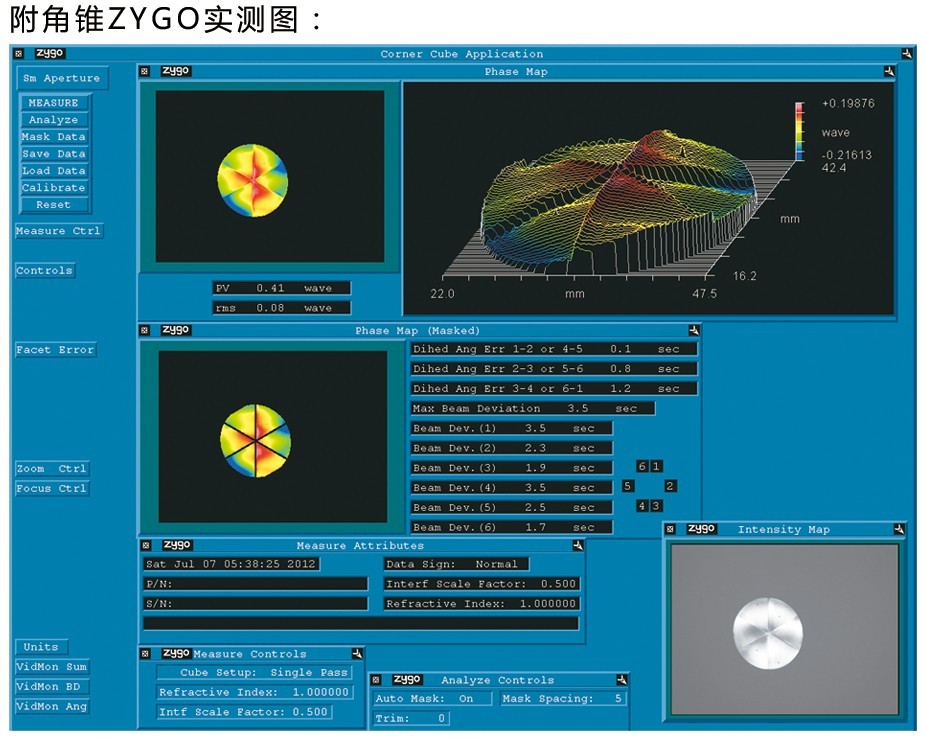

    Beam splitting angle:±3",±5",±8",

    Surface Accuracy:within1/10λ@632.8nm (reflective surface)

   Surface quality: 40/20;60/40,50/80

3. Processing equipments were imported from Germany, Korea and Japan.

4. Coating:upon request

5. Application: optical apparatus, opto-electrical digital products, image equipments, fingerprint systems, medical instruments, precise digital control machinery and other optical fields, popular science educational apparatus, optical communication, etc.
