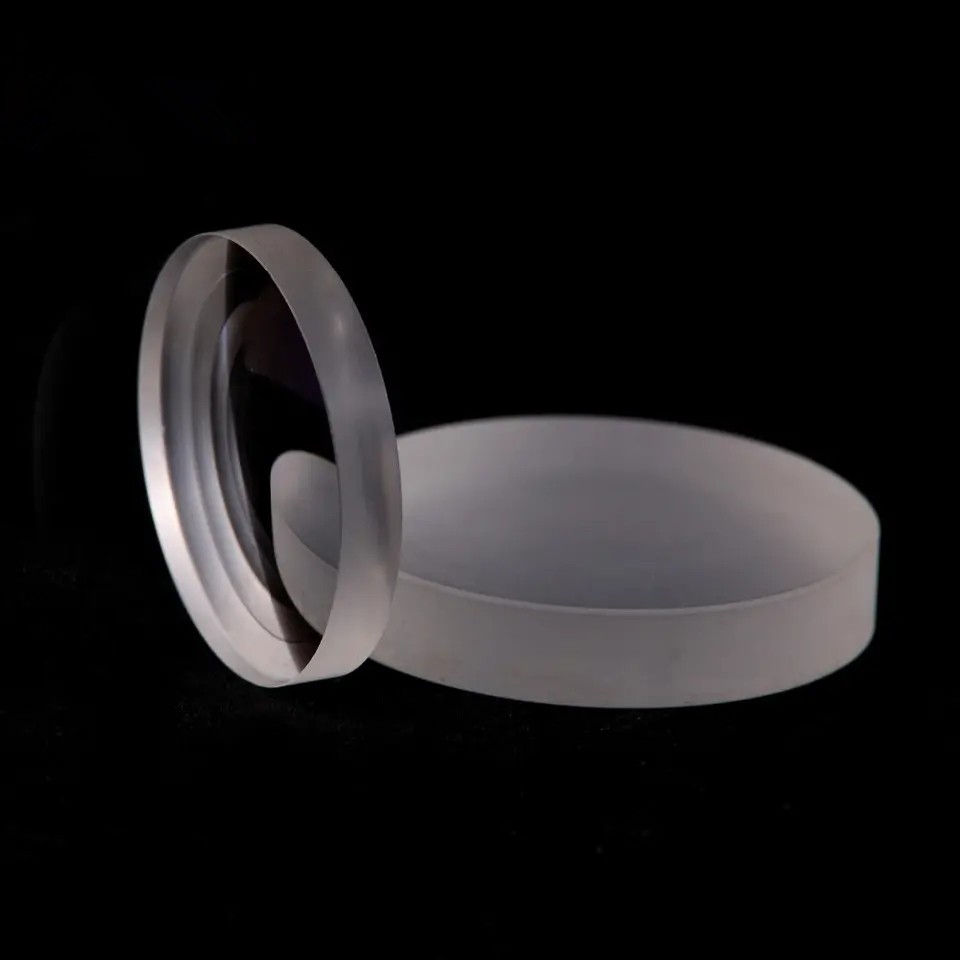

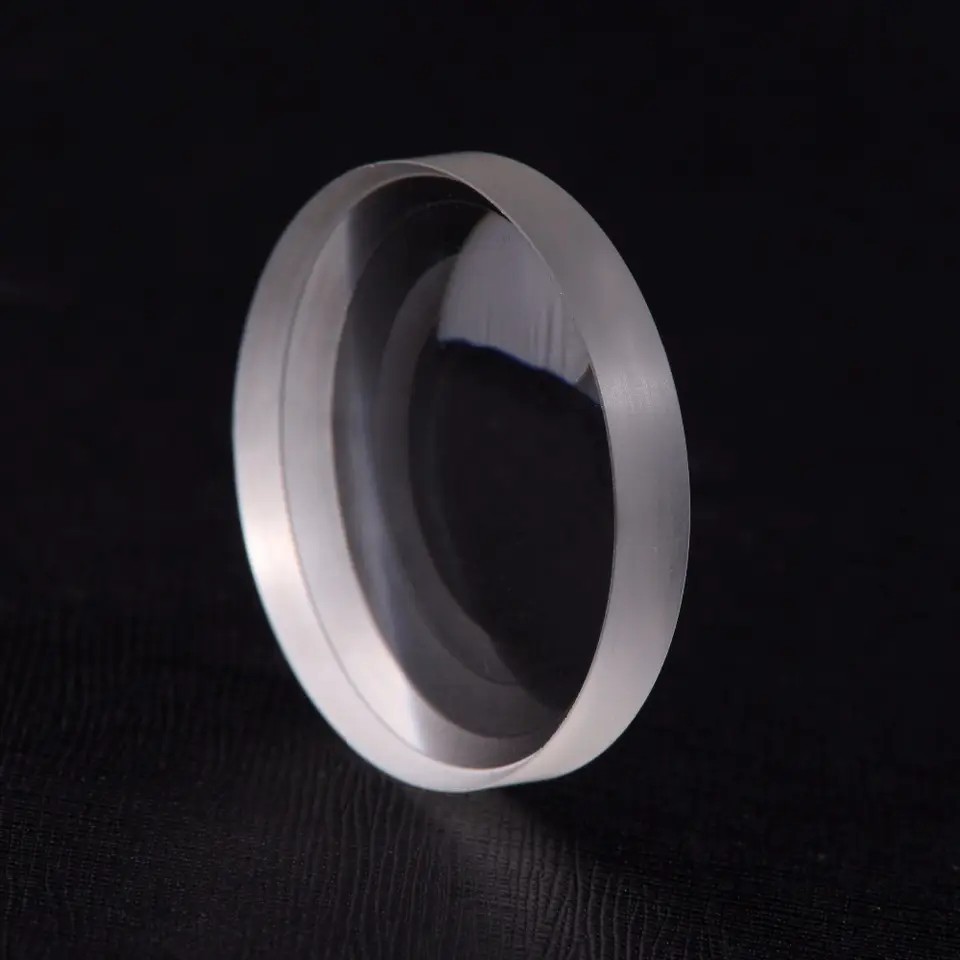

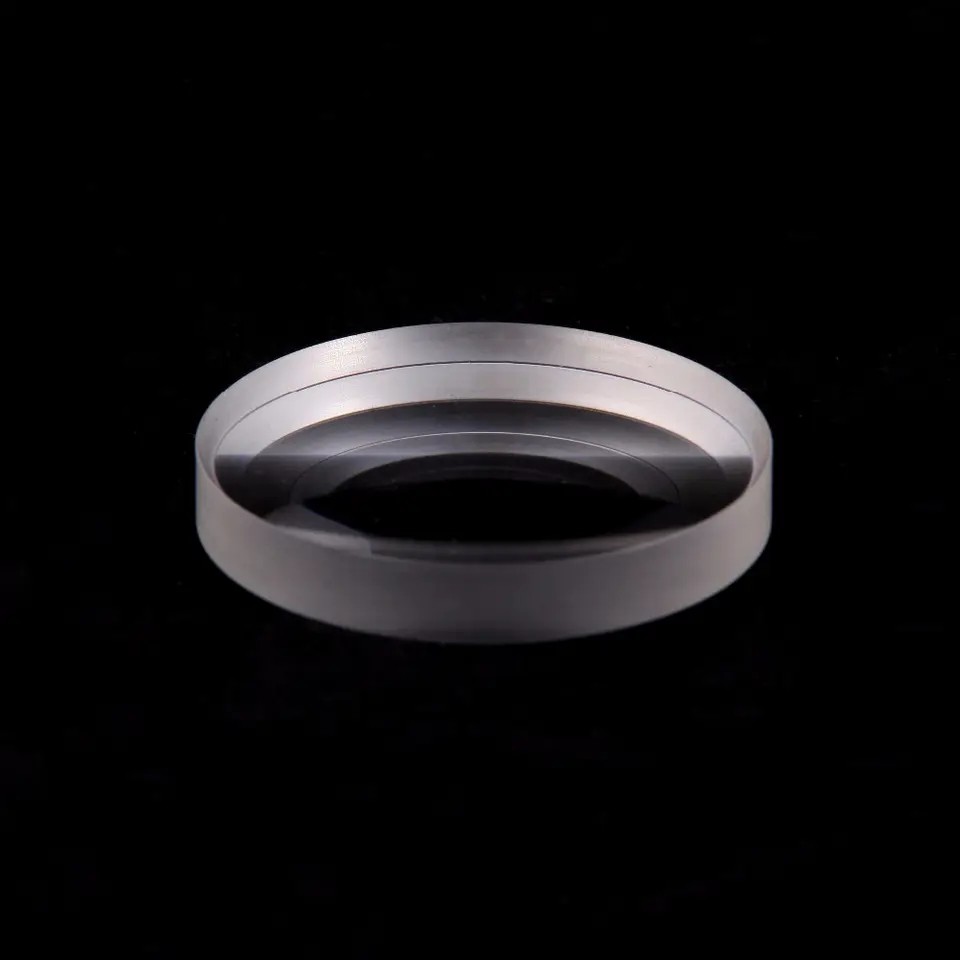

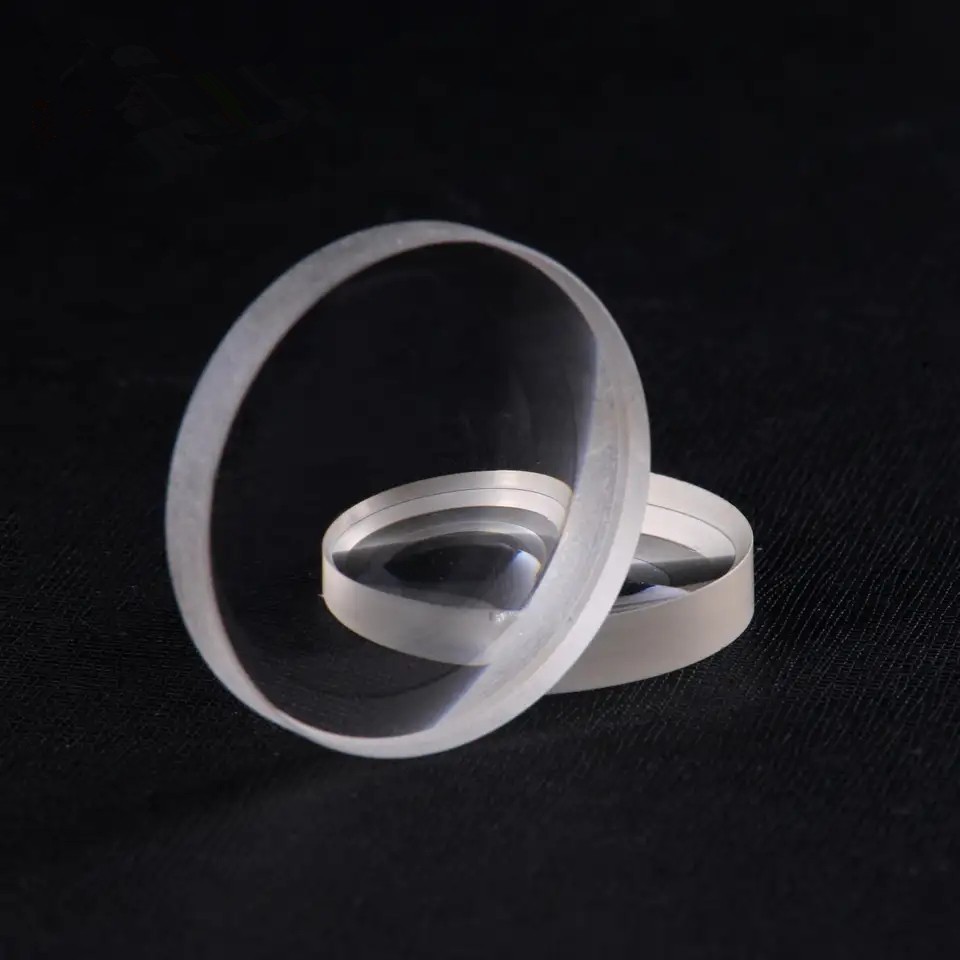

Concave Lens

● MOQ: ≧ 50pcs for OEM. 5 to 20pcs also welcome for sample order.
● Price: Depend on the quantity , materials and specification requirements, etc.
● Tooling Cost:Tooling charge may be needed for new design.
● Lead Time: General 7-15 days for customized drawing. Negotiable for Large Qty.
● Packaging: Blister packaging or bubble wrap for optical components with Carton.
●Payment Term:Payment>300USD, 30% T/T in advance, 70% balance before shipment. Payment<=300USD, 100% in advance.


A concave lens is a lens that diverges a straight light beam from the source to a diminished, upright, virtual image. It can form both real and virtual images. Concave lenses have at least one surface curved inside. A concave lens is also known as a diverging lens because it is shaped round inwards at the centre and bulges outwards through the edges, making the light diverge.

The process capacity for concave lens

● Material:N-BK7, H-K9L, Fused Silica, H-ZF52A, Sil, MgF2, CaF2, Sapphire, ZnSe, ZnS, etc.

● Diameter:5-200mm

● Tolerance: +/-0.05mm

● Thickness tolerance: +/-0.05mm

● Surface accuracy: λ/4 @632,8nm

● Centration : < 1 arc min

● Clear aperture : >90%

● S/D :60-40,40-20,20-10

● Coatings: AR coating,BBAR coating, customized available.
